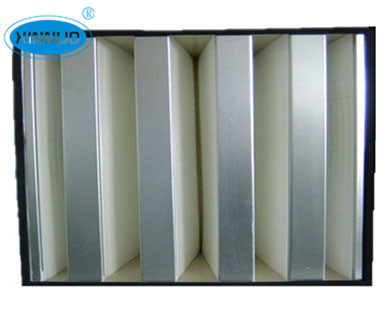

箱式高效空氣過濾器
Box efficient air filter
特點Features
●風量大、效率高、容塵量大
●適用于空調(diào)機組的終端過濾及各種大風量
空氣凈化設備
●Air, high efficiency, large amount of dust
●Applicable to the terminal filtration and air
conditioning unit of large volume of air
purification equipment
構(gòu)成材料及運行條件Materials and operating conditions
●框材：金屬外框或塑膠框 ●密封物：聚胺脂膠
●External frane：The casing outside the metal box or ●Sealant：Gel-glue
●分隔物：熱熔膠 ●濾料：玻纖濾紙
●Filter media：Hot-melt ●Filter media：Glass fiber
●使用最高溫度、濕度：80℃、80%
●Use the highest temperature, humidity：80℃、80%
型號尺寸及其他參數(shù)
Standard specification
型號 model | 外形尺寸 Outside dimensions (mm) | 額定風量 Rated air flow (m3/h) | 初阻力 Imitial resistance (Pa) | 效率（鈉焰法） Efficiency (%) | 濾芯 Filter Media (PCS) |
XN-16J | 305×610×295 | 1600 | ≤180或≤110（HV） | ≥99.99 | 4V |
XN-32J | 610×610×295 | 3200 | ≤180或≤110（HV） | ≥99.99 | 4V |
XN-20J | 305×610×295 | 2000 | ≤180或≤110（HV） | ≥99.99 | 5V |
XN-40J | 610×610×295 | 4000 | ≤180或≤110（HV） | ≥99.99 | 5V |
